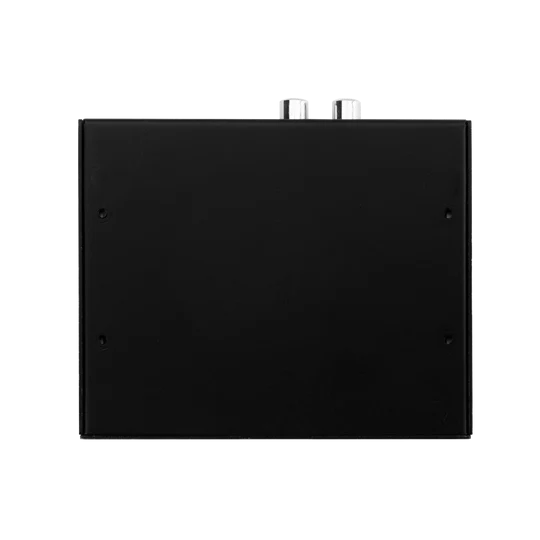

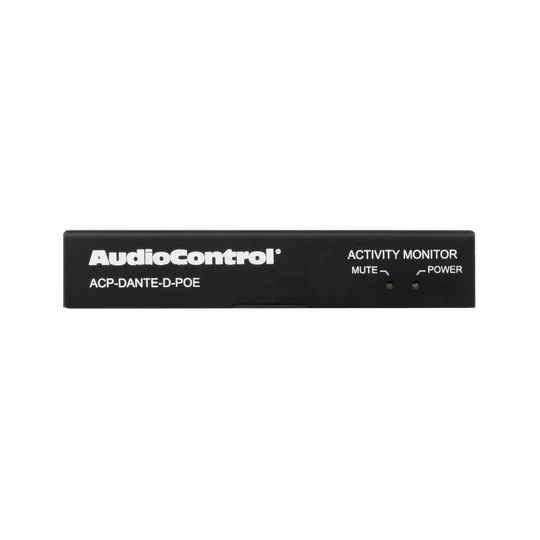

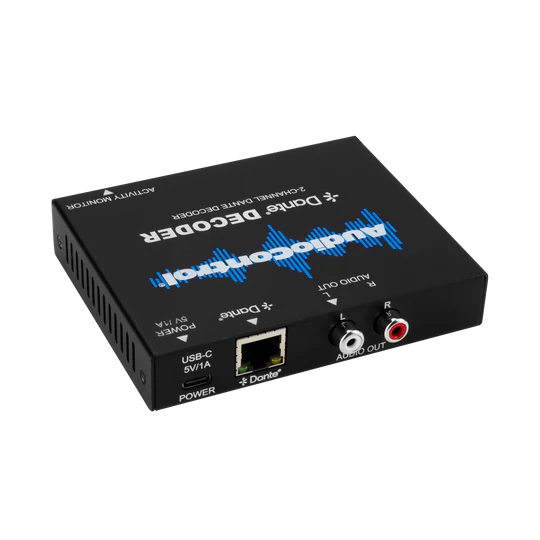

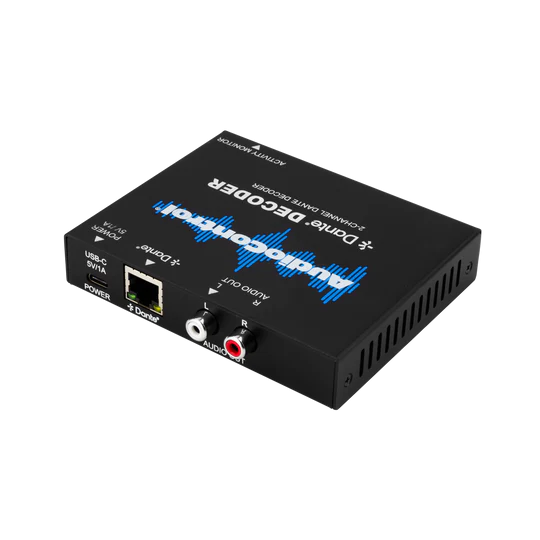

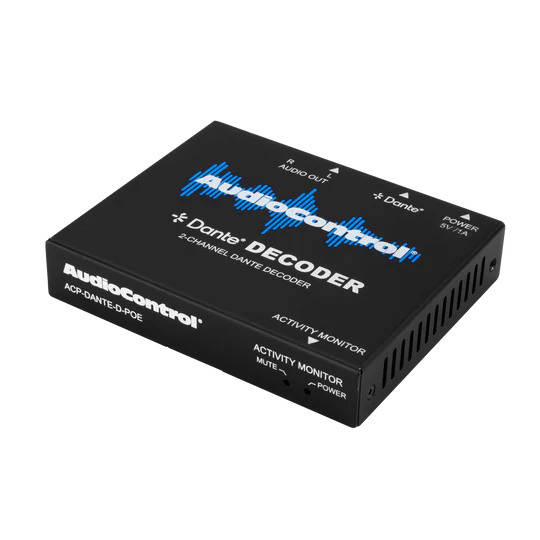

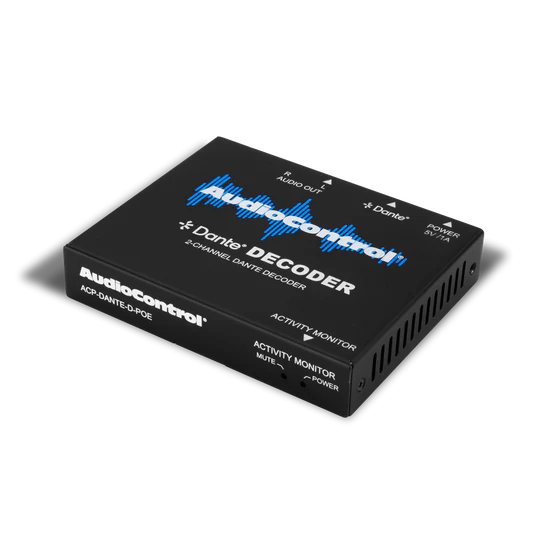

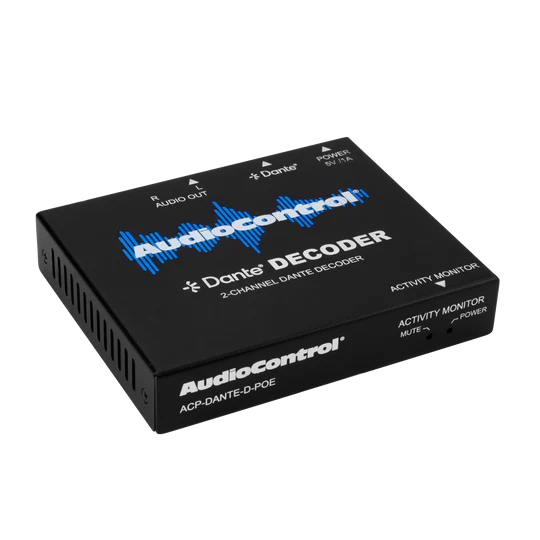

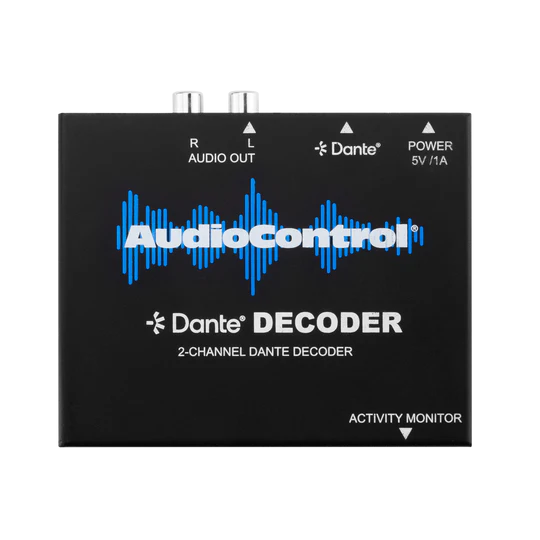

AudioControl 2-Channel Analog Audio Output DANTE Decoder
AudioControl 2-Channel Analog Audio Output DANTE Decoder
SKU:AC-DANTE-D-POE
Email: sales@oceanicdistribution.com for any sales enquiries
2-CHANNEL ANALOG OUTPUT DANTE DECODER
The ultra-compact AudioControl ACP-DANTE-D-POE is a two-channel, 100% lossless, Dante™ network audio decoder for Dante or AES67 audio streams. Industry-standard sampling rates from 44.1 kHz to as high as 96 kHz in 16-, 24-, or 32-bit word lengths are accurately converted back into an analog waveform. PoE capability and a compact form factor enable the ACP-DANTE-D-POE to be powered remotely for strategic placement near endpoint components. Any AVPro Edge MXnet 1G PoE switch may be used stand-alone or configured for Dante network traffic, providing a transfer distance of up to 100 meters (328 feet) with correctly implemented CAT5e or CAT6A infrastructure. Dante Controller, downloadable free from Audinate, is required to perform initial configuration, encoding parameters, Dante stream subscriptions, network settings, and AES67 audio support adjustments. For static installations, these may be set-and-forget adjustments. When powered and connected to a Dante network, the ACP-DANTE-D-POE is ‘auto-discovered’ for easy identification.
FEATURES
- PoE or PSU powered
- Accepts all Dante-platform and AES67 multicast audio signals up to a 96 kHz sampling rate and 32-bit resolution
- 100% lossless, accurate full frequency response decoding accuracy
- May be paired with the AudioControl AC-DANTE-E-POE encoder for a stand-alone, long-distance audio transmission system
SPECIFICATIONS
| AUDIO | |
| Frequency Response | 20-20kHz |
| Analog Input Voltage | Balanced or Unbalanced 1VRMS (2.828VP-P) at 0 dBFS |
| Format | LPCM |
| Supported Sample Rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Supported Bit Depths | 16, 24, 32 |
| Latency | Configurable 1, 2, 5ms |

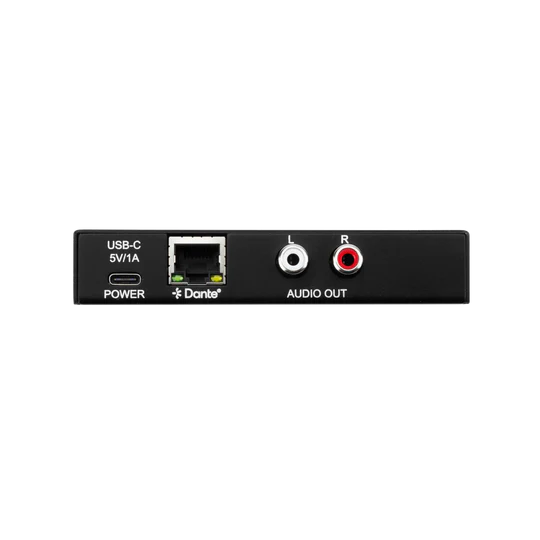

| AUDIO CONNECTIONS | |
| Analog Output | 1x Stereo RCA |
| Dante Network Audio | 1x RJ-45 |
| POWER | |
| USB Type-C Power Adapter |
Input: 100-240VAC, 50/60Hz, 0.5A Output: 5VDC, 1A |
| PoE via RJ45 | Power over Ethernet |
| ENVIRONMENTAL | |
| Operating Temperature | 23°F (-5°C) to 125°F (51°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity Range | 5% to 90% RH (no condensation) |
| DIMENSIONS | |
| Mounting | Furniture Mount Support |
| Height x Width x Depth (Single Unit) |
Millimeters: 110 x 96 x 25 Inches: 4.33 x 3.78 x 1 |
| Height x Width x Depth (Packaged Unit) |
Millimeters: 193 x 136 x 41 Inches: 7.6 x 5.35 x 1.62 |
| Weight (Single Unit) | 0.5 lbs (0.23 kg) |
| Weight (Packaged Unit) | 0.85 lbs (0.38 kg) |
| Product Warranty | 5 Years |
| *Specifications are subject to change without notice. Mass and dimensions are approximate. | |
