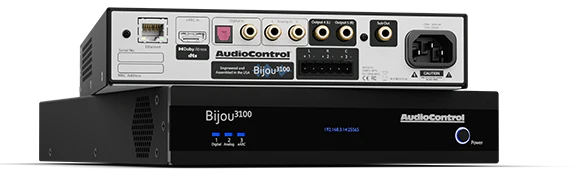

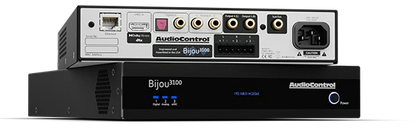

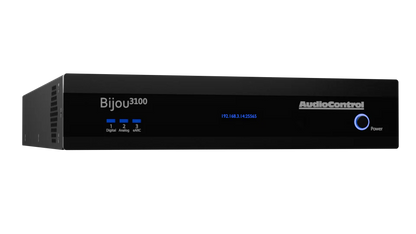

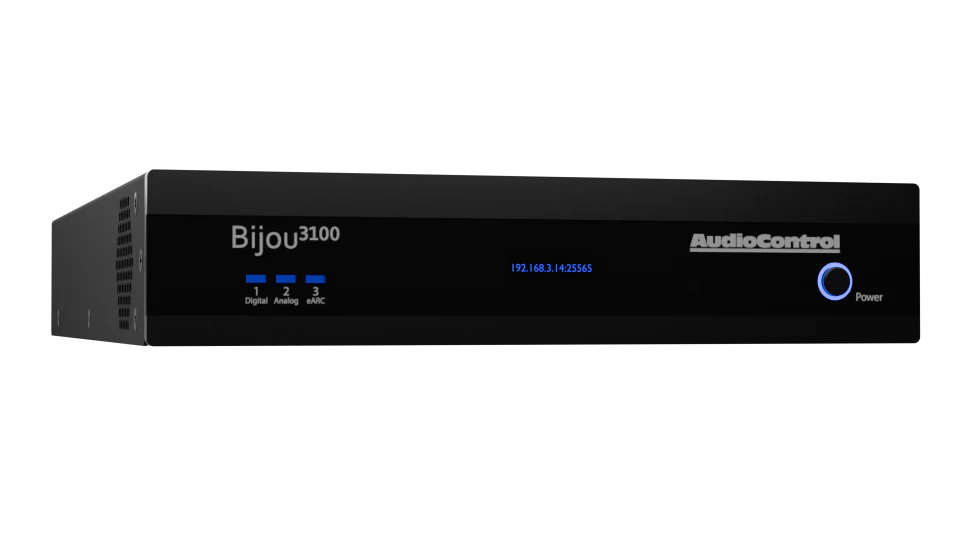

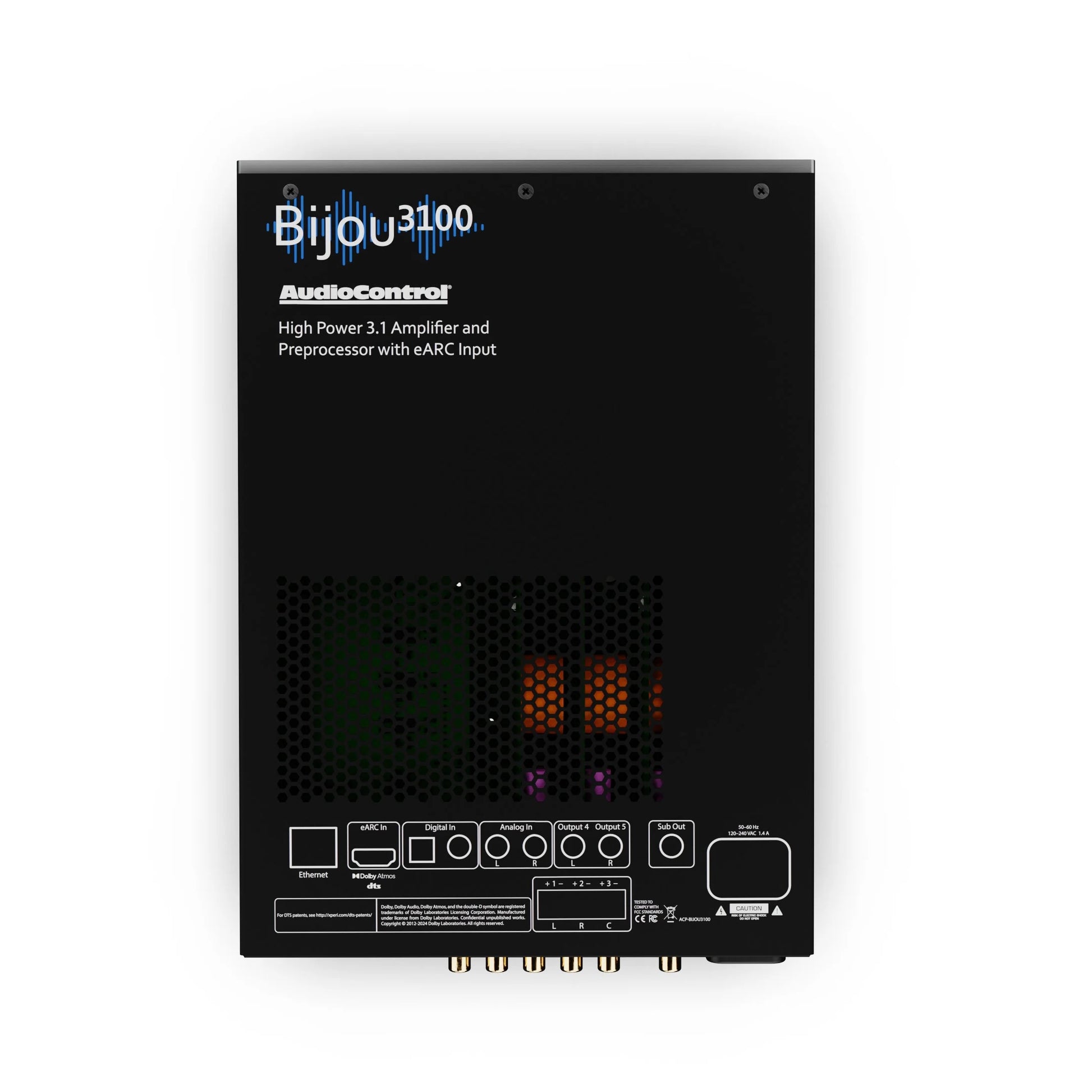

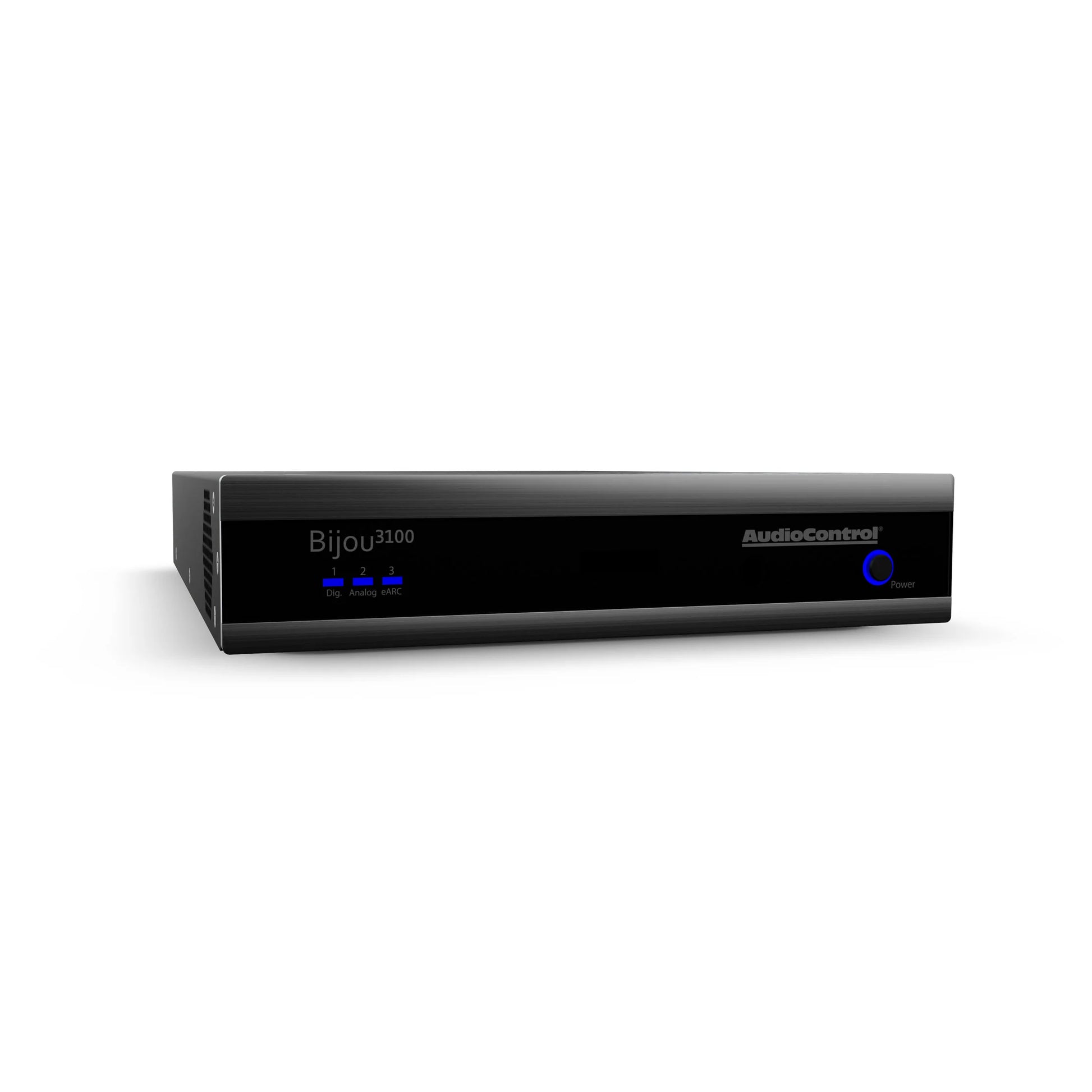

BIJOU 3100
3.1 CHANNEL MEDIA AMPLIFIER
The Bijou 3100 ups the channel ante to perfectly complement high-end, power-hungry passive soundbars. Left, Center, and Right game-changing GaN-fueled channels each punch well above their weight class, delivering 100 uncompressed pristine watts or more to launch the latest box office action soundtrack directly through to the living room's back wall. HDMI eARC in and line-level subwoofer out enhance TV viewing, while the automaton-friendly and web-configurable Bijou 3100 seamlessly integrates into any popular automation ecosystem.
The Bijou Series: redefining power performance in modern audio installations
The culmination of 45 years of American audio engineering innovation, AudioControl’s Bijou Series integrated eARC amplifiers are built from the ground up to deliver robust power, stunning audio quality, and HDMI eARC connectivity in a discreet, space-saving footprint. Designed for professional AV installers, the Bijou Series offers a range of high-performance amplifiers that cater to various installation needs, from residential home theaters to light commercial applications.
The series includes three models: the Bijou 2100 2.1-channel amplifier, the Bijou 3100 3.1-channel amplifier, and the Dante-enabled Bijou 5100D 5.1-channel amplifier with Dante, for the ultimate in high-performance, scalable, future-ready audio solutions.
Advanced technologies for superior performance
Bijou amplifiers incorporate cutting-edge GaN technology, delivering unprecedented power and efficiency in a compact design. This game-changing technology offers exceptional high-power performance, effortlessly driving even the most demanding speakers, for breathtaking sound that matches vivid, high-resolution visual presentations. HDMI eARC connectivity simplifies installation by reducing cable clutter and supports Dolby Atmos and DTS:X, providing jaw-dropping immersive audio experiences and the simplicity of operation your clients seek.
Seamless integration and flexibility
The Bijou Series is designed with professional installers in mind, offering features like IP control for compatibility with Control4 and other popular control systems, an intuitive web configuration interface, and configurable line outs for extended system flexibility. Bijou amplifiers can be easily integrated into any setup, making them versatile solutions for both new installations and system upgrades.
Ideal for any setting

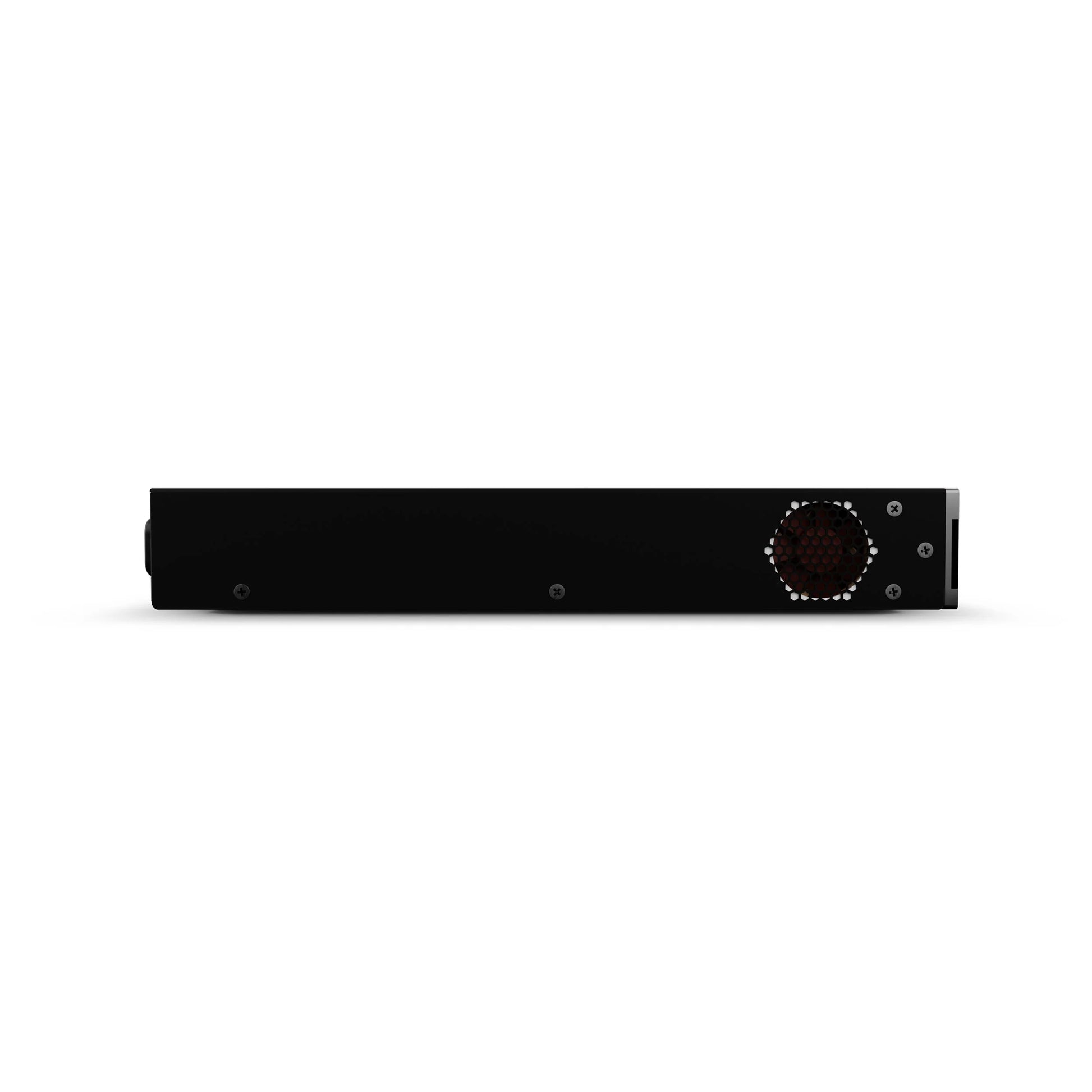

The Bijou Series’ compact, cool-running design allows them to fit seamlessly into any environment, delivering exceptional audio quality without compromising aesthetics. With a low-profile 1U half-rack form factor and convenient mounting options, these unobtrusive amps can be installed anywhere—even behind TVs. And with convenient mounting options, you’re able to deliver elevated audio experiences virtually anywhere.
Win more clients with versatile audio solutions
Whether your goal is to elevate the audio performance of a large-screen TV system, bring immersive entertainment into every area of the home, or provide agile, high-performance AV solutions in commercial spaces, deliver premium sound solutions that set your business apart with Bijou Series amplifiers, the ultimate choice for future-forward professional AV installations.
Advanced features and settings

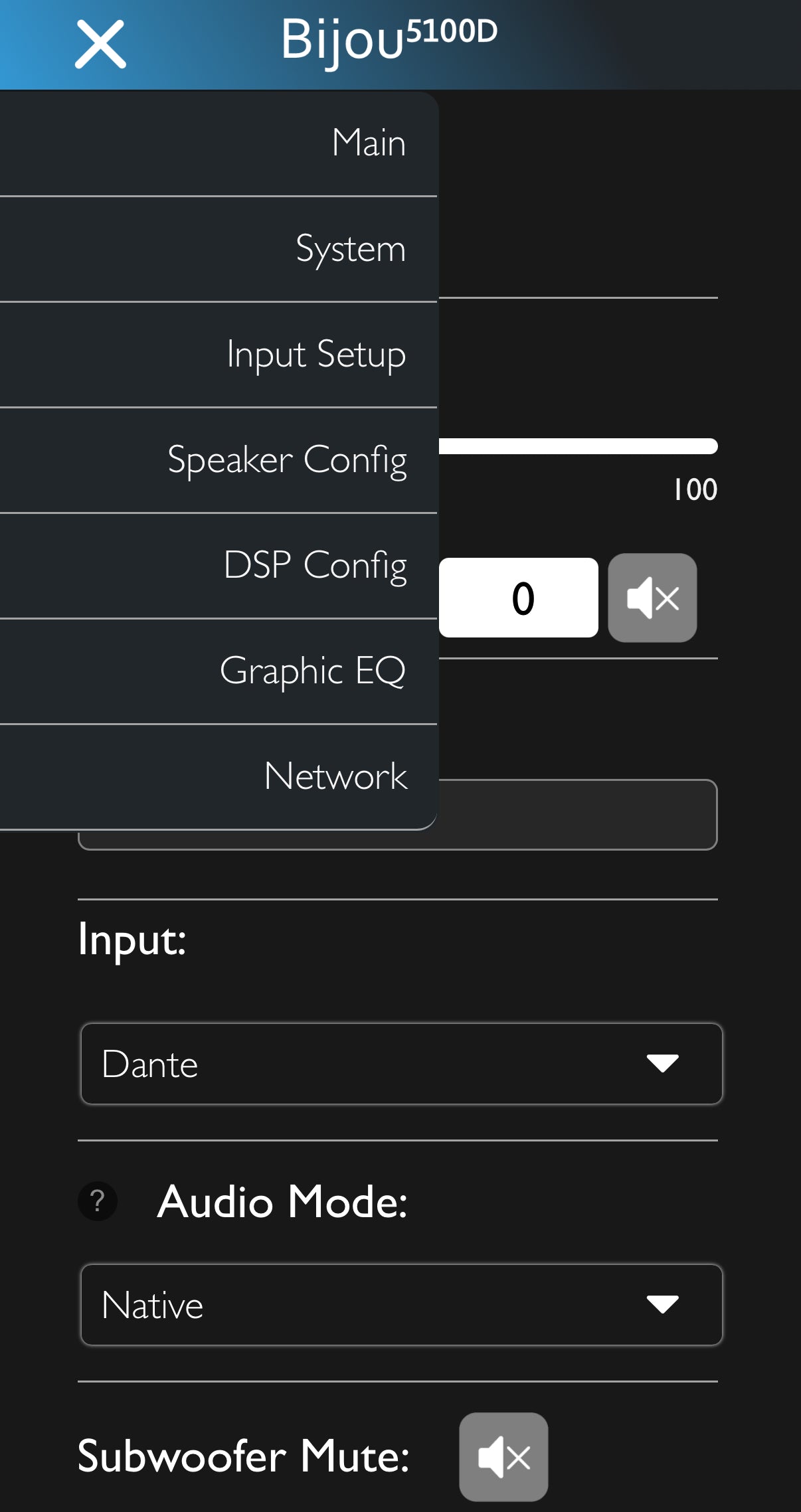

The new bijou range features a highly advanced web GUI for setup of all features of the receiver including speaker configuration, input setup, DSP configuration, EQ, network and more.
FEATURES
GaN amplification: the future of high-performance audio
GaN (Gallium Nitride) amplification uses a cutting-edge semiconductor material known for its high efficiency and superior performance. Originally developed for demanding applications like aerospace and telecommunications, GaN technology allows amplifiers to deliver potent power in a compact, thermally stable design, ensuring exceptional audio performance and reliability.
Experience unmatched audio performance with GaN technology:
- Higher efficiency: GaN amplifiers offer greater efficiency than traditional designs, converting more power into sound and less into heat.
- Compact power: Delivering more power in a smaller footprint, they allow for the most space-saving designs.
- Improved thermal performance: GaN amps run cooler and more reliably than traditional designs, for flexibility in installation and long-lasting performance even under demanding conditions.
- Superior audio quality: Achieve lower distortion and cleaner sound, effortlessly driving even the most demanding speakers to their maximum potential.
- Resilient design: Stay ahead of technology with a future-proof solution for modern audio systems.

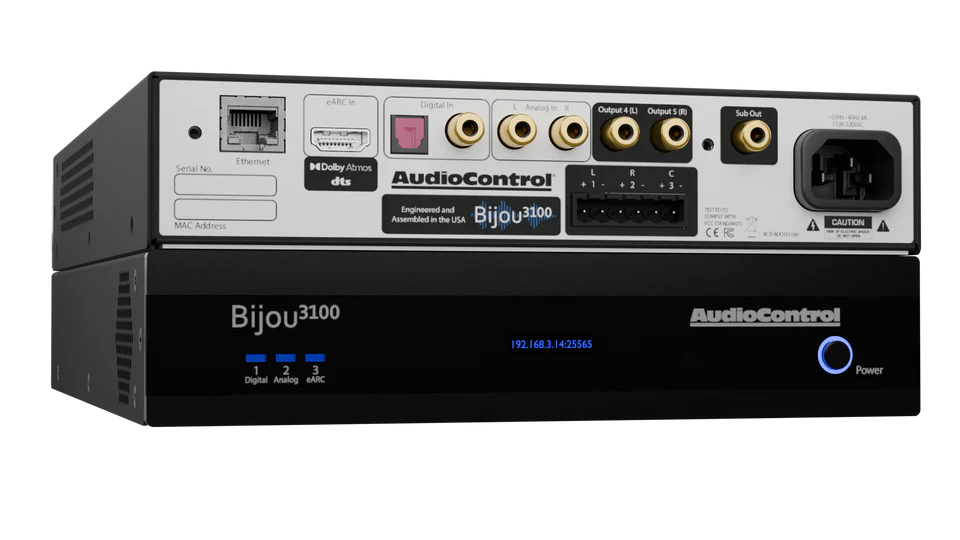

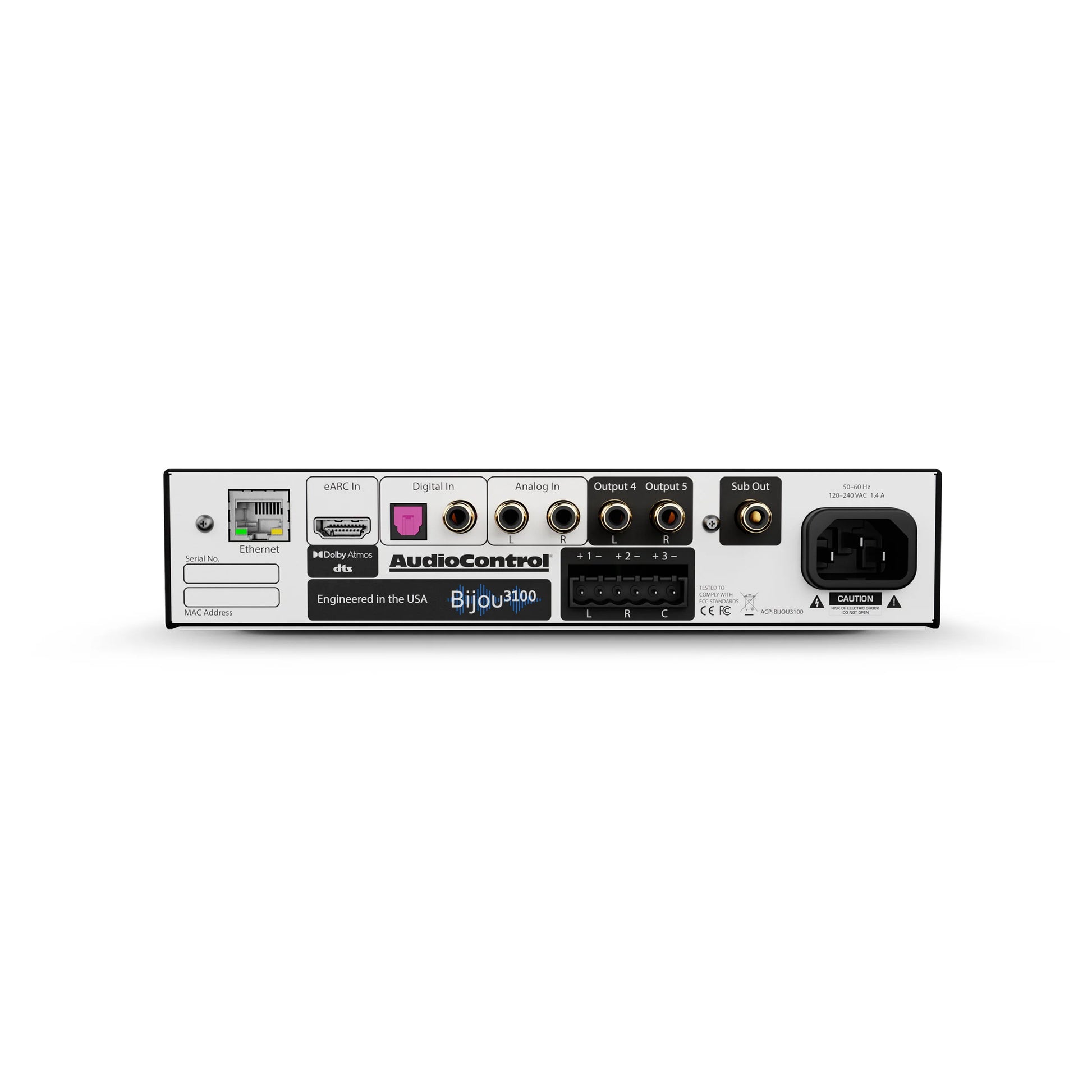

| Inputs | |
| eArc Inputs | 1 HDMI Audio-Only Input |
| Digital Inputs | 1 Optical TOSLINK and 1 Coax S/PDIF |
| Analog Inputs | Stereo L/R RCA single-ended |
| Analog Input Impedance | 47 k Ω |
| Analog Input Sensitivity | 2 Vrms |
| Outputs | |
| Preamp Outputs | Stereo L/R RCA single-ended |
| Subwoofer Output | 1 RCA single-ended |
| Loudspeaker Level Outputs | 3 via 6-pin Euroblock connector |
| Power Output | 100 W into 8 Ω, 200 W into 4Ω |
| Audio | |
| Minimum Speaker Load | 4 Ω |
| Frequency Range | 20 Hz to 20 kHz |
| Total Harmonic Distortion | 0.15% |
| DAC | Capable of handling sampling rates up to 384 kHz and bit depths up to 32-bit |
| Power | |
| Input Voltage | 110 VAC to 240 VAC |
| Power Consumption | |
| Standby | 3 W |
| Typical loud listening (1/8th power) | 125 W |
| Maximum | 700 W |
| BTU/hr | |
| Standby | 10 BTU/hr |
| Typical loud listening (1/8th power) | 340 BTU/hr |
| Maximum | 2046 BTU/hr |
| Dimensions | |
| Height | 1.7 in (43.9 mm) |
| Width | 8.3 in (211.3 mm) |
| Depth | 11.9 in (302.2 mm) |
| Weight | 6 lbs. (2.7 kg) |
| Rack Space | 1 RU High, half-rack width |
