AUDIOCONTROL

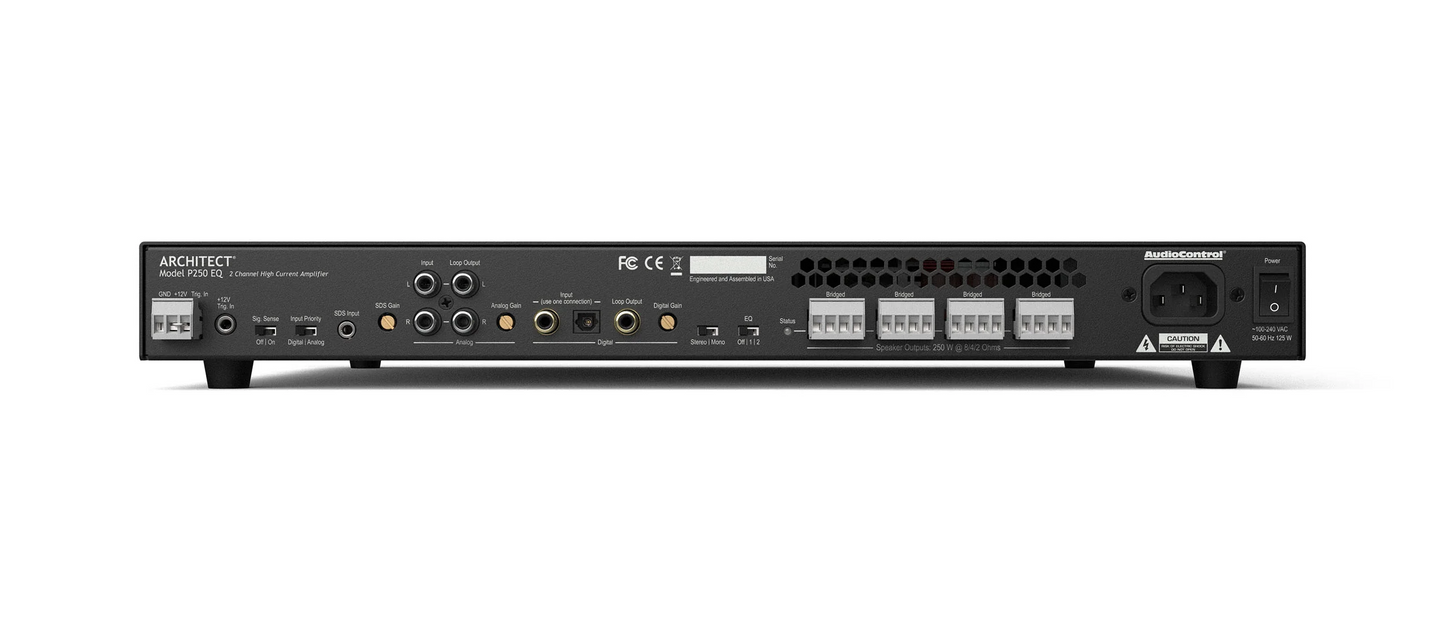

AudioControl P250 EQ 2CH MultiZone Power Amplifier

AudioControl P250 EQ 2CH MultiZone Power Amplifier

AC-P250EQ

$2,699.00 AUD
$0.00 AUD $2,699.00 AUD
Sale Sold Out

Email: sales@oceanicdistribution.com for any sales enquiries

MODEL ARCHITECT P250EQ
2 CHANNEL HIGH-POWER AMPLIFIER WITH EQ

The Architect Model P250 EQ is a high-power, 2-channel amplifier engineered with an emphasis on sound quality to deliver clarity and tonally balanced sound into any loudspeaker.

At only one rack space high, the P250 EQ delivers solid performance found in much larger solutions. Constructed with a high-current overbuilt power supply, an advanced filter stage, and fast-switching, impedance-matching output transistors, the P250EQ delivers 250 watts per channel into 4/2-ohm loads and 180 watts per channel into 8 ohms. The P250 EQ reproduces nuanced detail from any style of music with the power to control even the hardest to drive loudspeakers effortlessly.

MANUAL
DATA SHEET



FEATURES

  • 250 Watts Per Channel at 4/2 Ohms
  • 180 Watts Per Channel at 8 Ohms
  • 500 Watts at 8/4 Ohms Bridged
  • High Current Design, 2 Ohm Stable
  • LightDrive™ Anti-clipping Protection
  • Stereo Coaxial and TOSLINK Digital inputs
  • Stereo Coaxial Digital Loop Output
  • Stereo Analog Input with Loop Output
  • Signal Detection Switch Input
  • Input Prioritization & Signal Sense Switching
  • Selectable EQ Presets
  • Shallow Mounting Depth (13.5”)
  • Compact 1U Design
  • Unparalleled Energy Efficiency






SPECIFICATIONS

INPUTS
Inputs: 1 Analog Stereo Main, 1 Digital Main (Coaxial / TOSLINK), 1 Analog SDS
Analog Input Sensitivity: 1 Vrms for full output, level at maximum
Gain: 27 dB
OUTPUTS

Amplifier Channels: 2
Power Output:

  • 180 W per channel into 8 Ohms
  • 250 W per channel at 4/2 Ohms
  • 500 W Bridged Mono at 8/4 Ohms

Minimum Speaker Load: 2 Ohms

View full details
