BANG & OLUFSEN

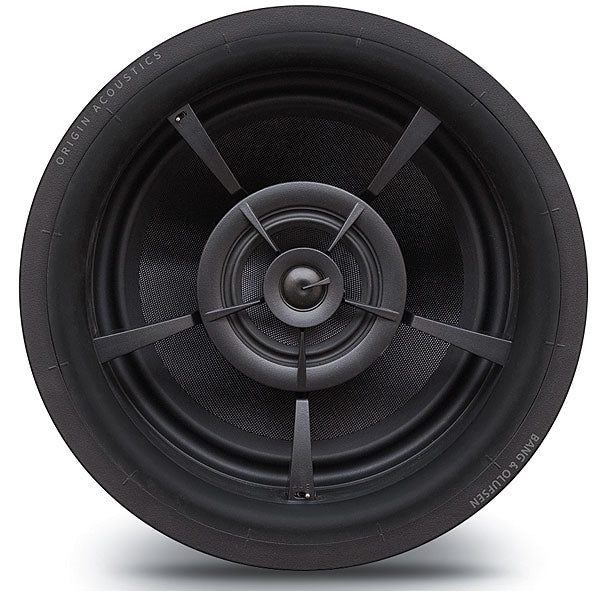

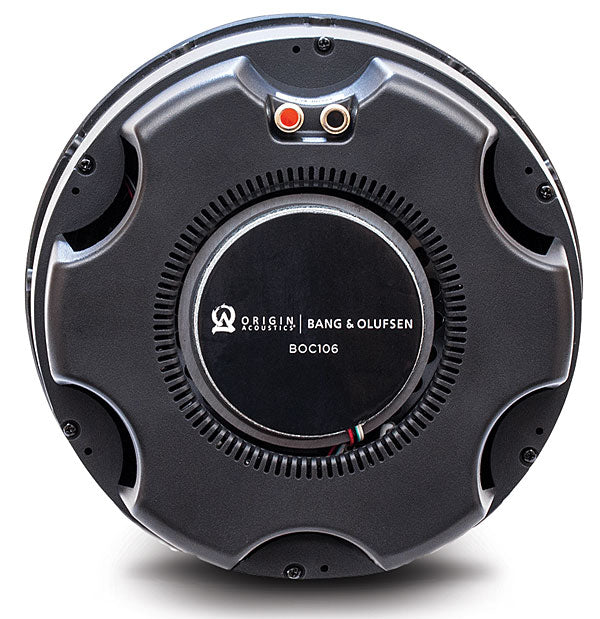

Bang & Olufsen 10" 3 Way InCeiling Speaker

Bang & Olufsen 10" 3 Way InCeiling Speaker

SKU:BO-BOC106

Regular price $0.00 AUD
Regular price $0.00 AUD Sale price $0.00 AUD
Sale Sold Out

Email: sales@oceanicdistribution.com for any sales enquiries

Optional billet aluminum Advanced Grilles - See BO-BOPAG6-xxx





BOC100 Datasheet

BOC100 Series

Celestial™ Collection

All Music. Zero Clutter. The BOC106 in-ceiling speaker has been co-engineered and designed by the founders of the first in-wall speaker to deliver the highest level of sonic bliss with elegantly discreet aesthetics.



The patented Multi-Motion™ pivoting mechanics of the tweeter and midrange (BOC86 only) enables sound to be directed towards the preferred listening area regardless of the speakers position.



 Multi-Motion™ Technology

The patented Multi-Motion™ pivoting mechanics of the tweeter and midrange (BOC86 only) enables sound to be directed towards the preferred listening area regardless of the speakers position.

Tool-less Mounting System

The Zip-Cliq™ ensures easy and tool-less installation while providing the perfect conditions for sound reproduction - regardless of the construction materials in place.

Tonearm™ Tweeter

Styled as the name suggests, this patented technology pins the tweeter at the center for increased stability, enabling the tweeter to play louder with wider dispersion.

 X-Wave™ Woofer Surround

This suspension element absorbs unwanted frequencies that reflect up and down the woofer cone to reduce harmonic distortion while maintaining the desired linear travel of the woofer.

Tri-Linear Configuration

The three-driver design is efficient and is more precise by dividing the frequency spectrum into smaller segments allowing the individual drivers to concentrate on a  more limited sonic palette.

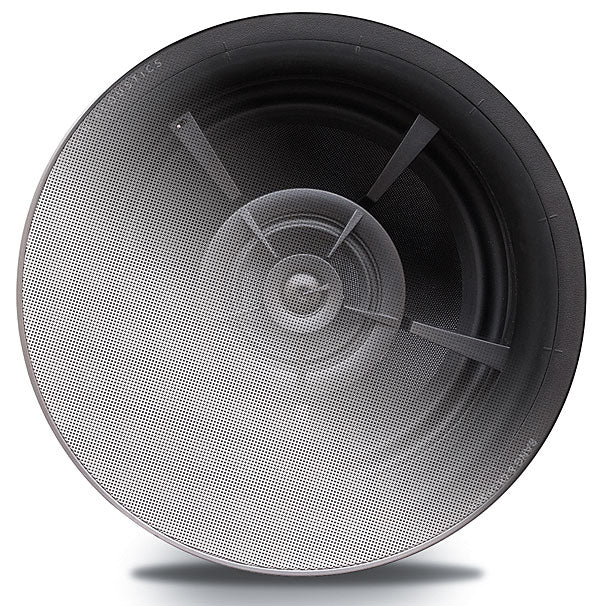

More Than Meets the Eye

 The visible speaker grilles remain true to the Bang & Olufsen design philosophy of understated luxury. The premium grilles are made from polished aluminum and white steel.



Model BOC106 Part Number SCBOC10060

Woofer Cone Glass Fiber Woofer Diameter 10" (254mm)

Mid-Range Dome Glass Fiber Mid-Range Diameter 4" (102mm)

Tweeter Dome Silk DPSD Tweeter Diameter 1" (25mm)

Frequency Response 28 Hz - 20 kHz Impedance 6 ohm

Minimum Power Handling 50 - 200 Watts

Diameter 11.26" (286mm)

Grille Diameter 11.75" (299mm)

Cutout Diameter 10.375" (264mm)

Mounting Depth 6.22” (158mm)
