Key Features

• Aluminum Powerhouse: Pure aluminum woofer, faceplate, and enclosure for robust, deep performance.
• Purposeful Design: Perfected in-wall subwoofer with heat dissipation, vibration control, and expanded enclosure.
• CabinSpace Magic: Retrofit-friendly design maximizes air volume, concealing with a low-profile grille.
• Digital Precision: SUBA500 amplifier for flexible tuning, enhancing movie quakes or fidelity listening.
• Lifetime Assurance: Built to the highest standards, the CSUB10R comes with a lifetime warranty.

Product Overview

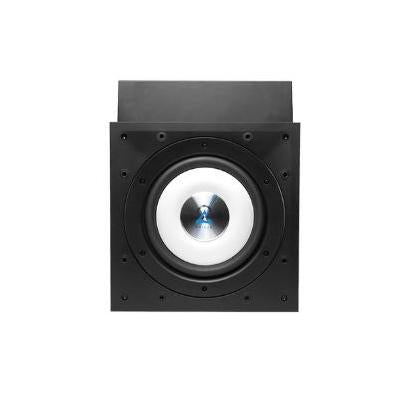

Experience premium audio with the Origin Acoustics CSUB10REX subwoofer. As a flagship of the Composer Collection, it delivers profound, crystal-clear bass. The 10-inch reinforced cone ensures robust sound reproduction, seamlessly integrating into your home audio setup for an elevated listening experience. With versatile precision and a sleek design, the CSUB10REX complements any space. Upgrade your audio with Origin Acoustics – where innovation meets exceptional sound. Our Explorer Collection withstands harsh marine conditions, providing amazing musical fidelity during family lake time or open-sea trips. Durable and high-performing, Origin Acoustics ensures enduring quality in every speaker.

CSUB10REX
Woofer:	10” Anodized Aluminum(254mm)
Grille Material:	Aluminum
Frequency Response:	30Hz-250Hz
Power Handling:	100 – 500W
Impedance:	8Ω
Sensitivity:	88dB
Amplifier Requirements:	SUBA500 / SUBA150
Cutout Dimensions:	13” W x 13” H (330 x 330 mm)
Dimensions (Enclosure):	13” W x 17” H x 3.5” D (330 x 430 x 88 mm)
Grille Dimensions:	14.375” L x 14.375” W (366 x 366 mm)
