ORIGIN ACOUSTICS

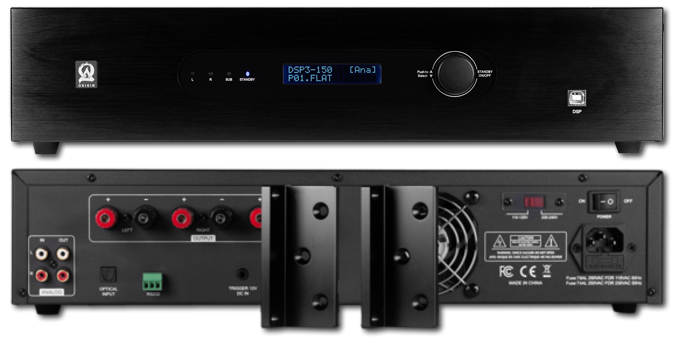

Origin DSP3-150 3 Channel Low Impedance DSP Amplifier
Origin DSP3-150 3 Channel Low Impedance DSP Amplifier
SKU:OA-DSP3-150
Regular price
$0.00 AUD
Regular price
$0.00 AUD
Sale price
$0.00 AUD
Unit price
per
Email: sales@oceanicdistribution.com for any sales enquiries
Origin Acoustics DSP3-150 Amplifier
Key Features
- 600w total output for powerful audio performance
- Two 150w channels and one 300w channel
- Preconfigured DSP for easy setup
- Integrated compressors and limiters for speaker protection
- Class D NXP Amplifier Module for efficient operation
Product Overview
The Origin Acoustics DSP3-150 Amplifier is a versatile and powerful audio solution, delivering a combined 600 watts of high-fidelity sound across three channels. It features two channels at 150 watts each and a third at 300 watts, ideal for architectural subwoofers. The amplifier is equipped with preconfigured DSP and an in-depth editor, providing flexibility in audio customization. Its Class D NXP Amplifier Module ensures efficient operation, while integrated limiters and compressors safeguard the connected speakers.
| DSP3-150 | |
| Part Number: | AMPD03X 1500 |
| # of Channels: | 3 Powered Out (L/R/S) |
| Analog Input: | 2x RCA A/B Unbalanced |
| Digital Input: | 1x Optical |
| Analog output: | 2x RCA A/B Unbalanced |
| Dimensions: | 433 x 88 x 357mm Without mounts 482 x 88 x 357mm With mounts |
| Output Power: | 150W @ 4Ω – Left 150W @ 4Ω – Right 300W @ 4Ω – Subwoofer |
| THD @ Rated Power 4 ohm: |
L/R: <1% (1Khz) Sub: <3% (5hz) |
| Protection: | Over-Current, Over/Under Voltage, Output DC and Over-Temperature |
Resources
Manual
