Key Features

• Superior audio quality for professional spaces
• Durable and reliable in various conditions
• Streamlined design for easy installation
• Compatible with diverse audio systems
• Elegant aesthetics for modern environments
• 2 Way 70/100v Line In-Ceiling Speaker
• 8" Polypropylene Woofer
• 1" Silk DSPD Tweeter (Pivoting)
• 92dB Sensitivity
• 41Hz - 20kHz Frequency Range
• 100 Degrees Conical Coverage Area
• Trans. Taps: 60w, 30w, 15w, 7.5w, 8 Ohm

Product Overview

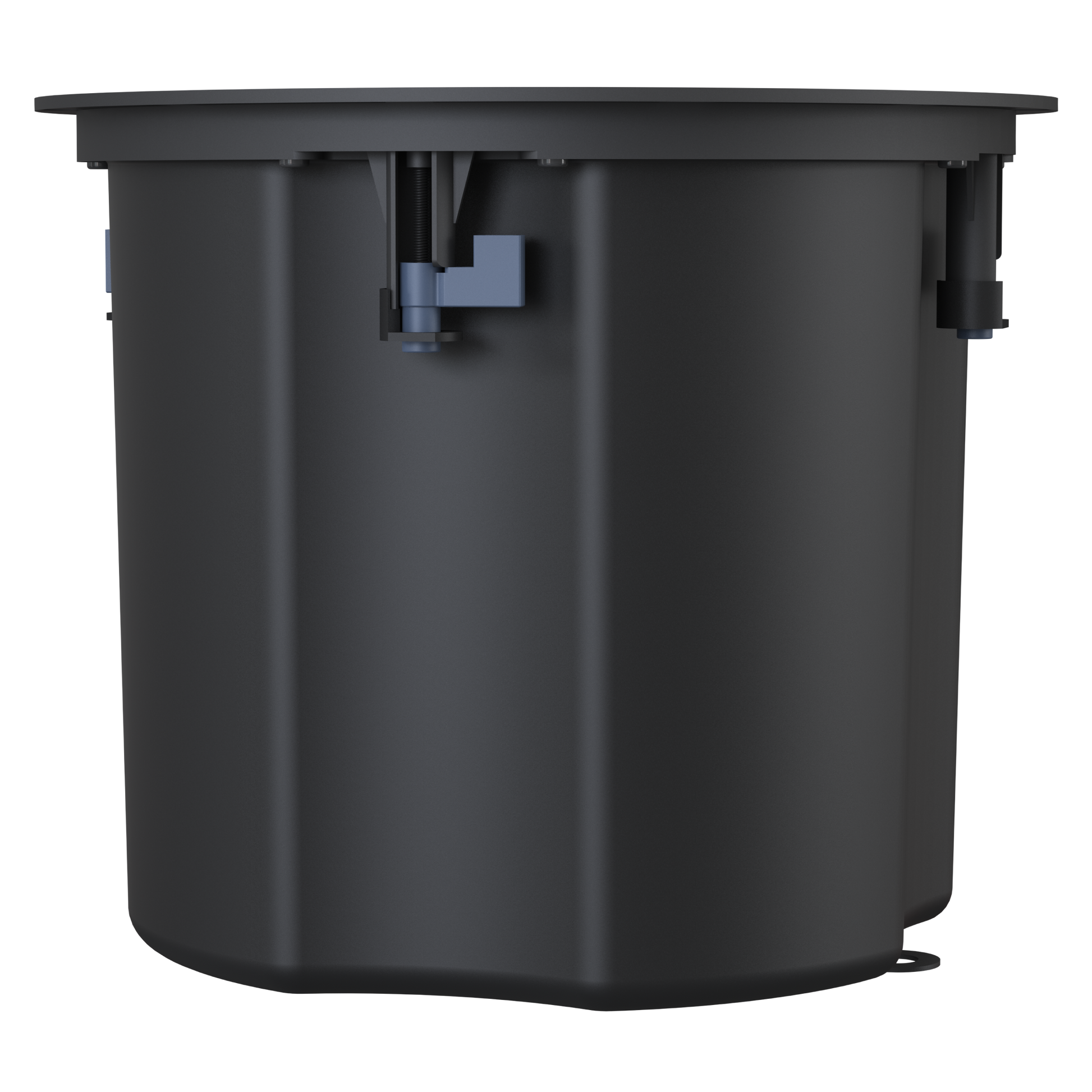

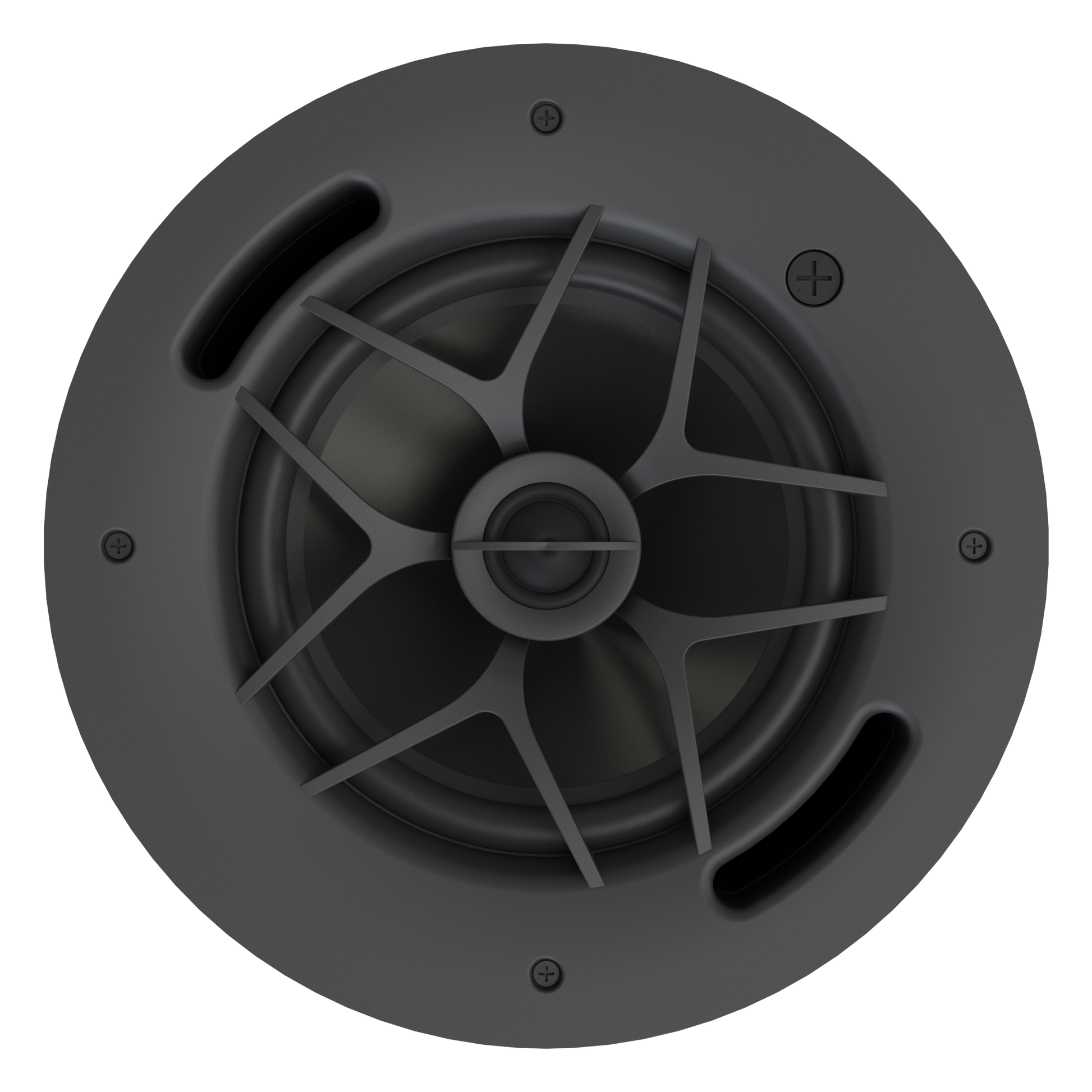

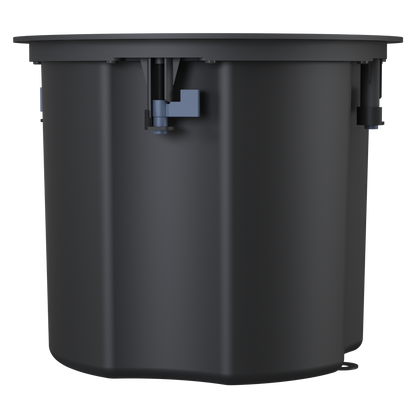

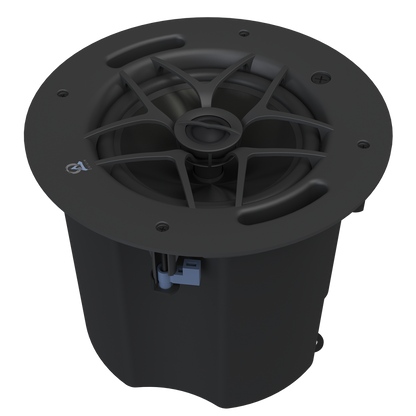

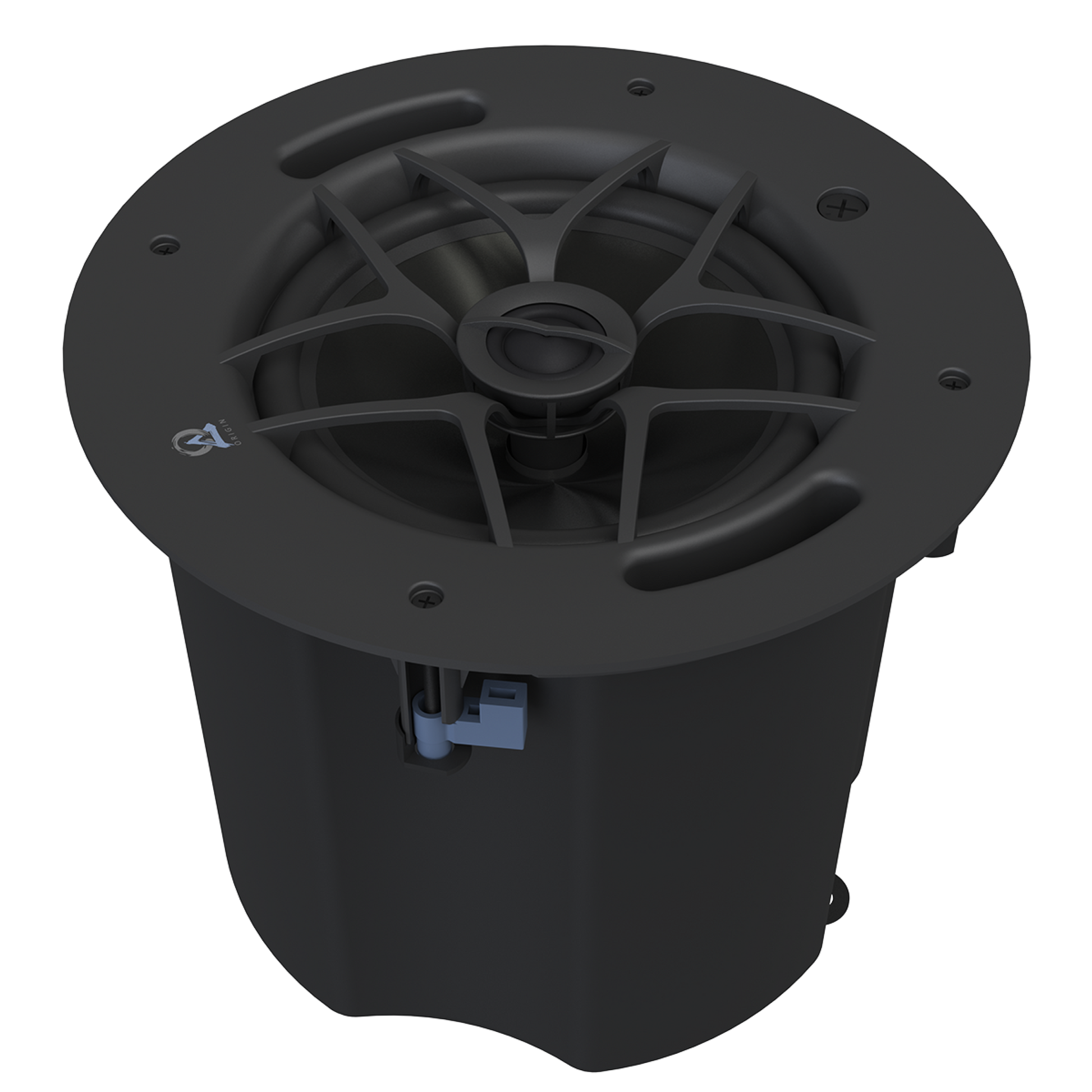

The Origin Acoustics PC80 from the Professional Collection delivers high-quality sound in a robust and stylish design, ideal for enhancing audio in any professional setting.

PC80

Part: SPC80000B, SPC80000W

Woofer: 8" IMPP

Tweeter: 1" Silk DSPD MMP

Power Handling (Program Power): 120 Watts

Power Handling (Continuous Pink Noise): 60 Watts

Frequency Response(-10db): 41Hz - 20kHz

Frequency Response (-3db): 60Hz - 20kHz

Nominal Coverage Angle: 100° Conical Coverage

Sensitivity: 92dB

Rated Maximum SPL: 112dB

Impedance: 6 Ohm/70V/100V

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Diameter: 286mm

Cutout Diameter: 266mm

Grille Diameter:  296mm

Mounting Depth: 242mm

Feature: Metal Can, Zinc Plated

Colors: Black
