Key Features

• Room-filling low-frequency performance
• Durable and aesthetic speaker design
• Seamless sound integration for immersive audio experience
• Easy to install with minimal tools
• Excellent power handling capability
• 2 Way 70/100v Line Pendant Speaker
• 6.5" Polypropylene Woofer
• Integrated 6.5" Rear Passive Radiator
• 1" Silk DSPD Tweeter (Pivoting)
• 88dB Sensitivity
• 62Hz - 20kHz Frequency Range
• 120 Degrees Conical Coverage Area
• Black Or White Textured Finish
• Trans. Taps: 60w, 30w, 15w, 7.5w, 8 Ohm

Product Overview

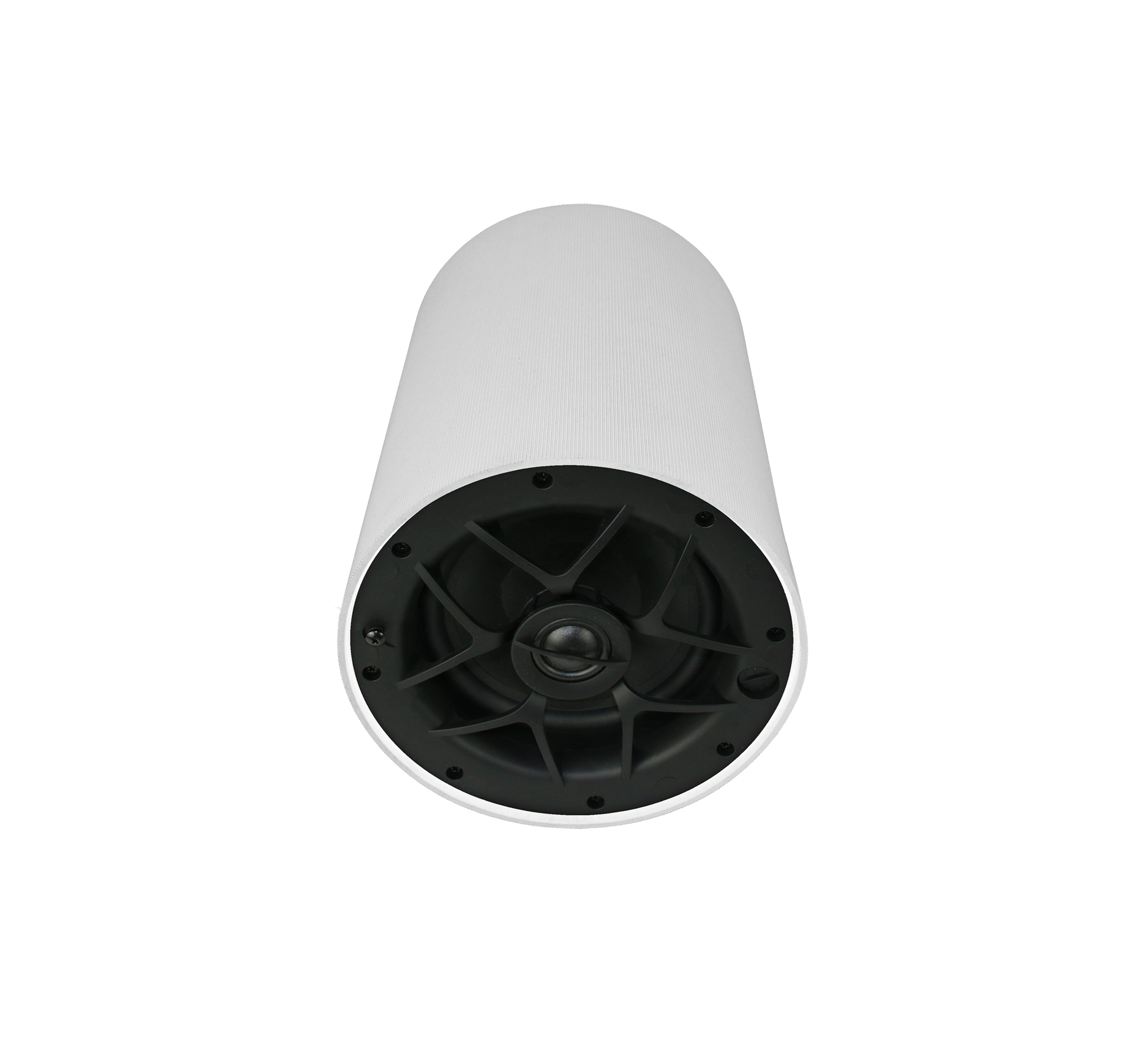

Discover the enriching sound of the PP60B from Origin Acoustics. This audiophile-grade loudspeaker delivers dynamic low-frequencies, filling any room with immersive audio. Its aesthetic design is both functional and appealing, promising durability and easy installation. Meticulously crafted for optimum power handling, it offers seamless sound integration, an audio lover's dream. The PP60B enhances your sound environment, ensuring satisfaction for even the most discerning listeners.

PP60

Part: SPP60000B, SPP60000W

Woofer: 6 1/2" ” (165mm) Polypropylene

Tweeter: 1” (25mm) Silk DSPD™ MMP™

Power Handling (Program Power): 130 Watts

Power Handling (Continuous Pink Noise): 65 Watts

Freq. Response(-10dB): 50Hz - 20kHz

Freq. Response(-3dB): 62Hz - 20kHz

Nominal Coverage Angle: 120° Conical Coverage

Sensitivity: 88dB

Rated Maximum SPL: 108dB

Impedance: 8 ohm nominal

Transformer Taps: 70V - 60W, 30W, 15W, 7.5W | 100V - 60W, 30W, 15W

Diameter: 210mm

Length: 313mm

Feature: 6 1/2” Passive Radiator

Colors: Black, White
